Series 2313

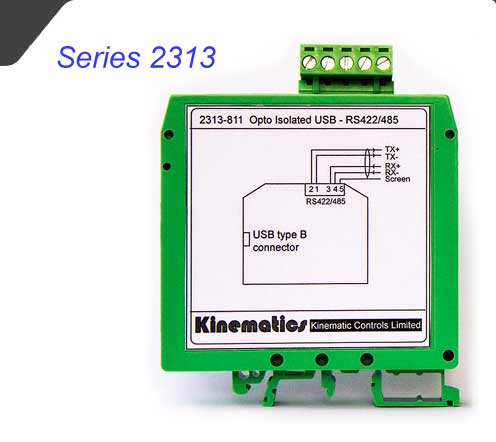

Series 2313 Optically Isolated DIN Rail Mounting Protocol Converter USB to RS422/485/232

The Kinematics CommOptic Series 2313 provide a conversion from USB to RS422/485/232 with optically isolated transmit and receive circuits to eliminate noise problems associated with earth loops. The RS422/485 Protocol provides further noise immunity and increased transmission distance over conventional RS232.

•  Powered via USB type B connector
•  Max Baud rate 115,200bps
•  RS422/485 version 5 pin screw terminal plug
•  RS232 version 9 pin male DB9M
•  Indicator LED's for transmit and receive
•  Mode selection by internal links
•  RS485 direction auto or by RTS (depends on version)
•  Provision for internal line termination

90mm high X 80mm wide X 25mm thick (i.e. rail width)

Versions Available
•  2313-811 - RS422/485 version
•  2313-812 - RS232 version

Download 2163 User Instructions 2313-811 User Instructions

Download 2163 User Instructions 2313-812 User Instructions

The 2313 series use the FT232R USB UART IC. The latest drivers can be found here on the FTDI site Com Port Driver
