Series 2247 Optically Isolated Phase Cut Control

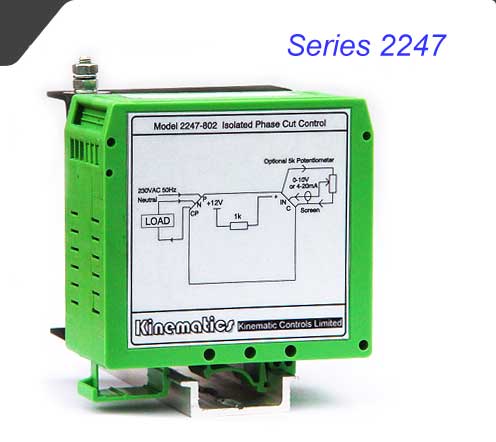

The Kinematics Series 2247 Phase Cut Controllers feature an optically isolated control input that can be driven by either a voltage or mA signal. The output is controlled by phase chopping (phase cutting) the input supply. It will drive a load of up to 3Amps.
Zero and Span (Min and Max) adjustments are provided for fine tuning. This controller is suited to Vibratory Feeders and simple Fan Speed Control.
The control is mounted in a DIN rail enclosure with an attached heatsink.

•  230/240V 50Hz or 110/120 50Hz input Power supply
•  Output Control Phase (CP) rated to 3 Amp
•  Selectable trigger cycle
•  Optically Isolated Control Input
•  Control Input ranges 0-10V, 0-5V, 1-5V, 0-20mA or 4-20mA
•  Trimpots for Zero and Span (Max) adjustment
•  Heatsink fitted to side of enclosure

90mm high X 80mm wide X 75mm thick (i.e. rail width including heatsink)

Versions Available
•  2247-802 - 230/240VAC 3Amp output version
•  2247-804 - 110/120VAC 3Amp output version

Download 2163 User Instructions 2247-802 User Instructions
