Series 2225
Series 2225 Mk2 RS422 Encoder to PLC Interface

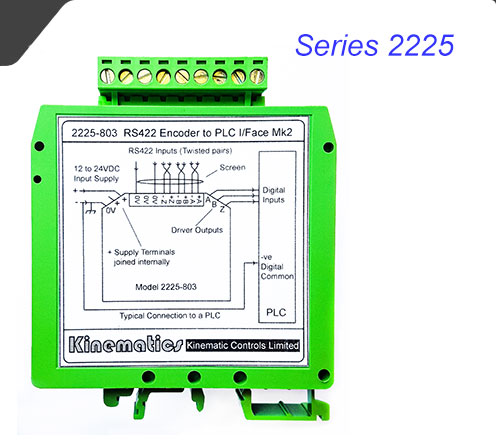

The Kinematics Series 2225 Mk2 Interface is designed to accept A, B, Z RS422 level signals from an encoder and convert them into either 24V PNP push-pull or NPN open collector sink outputs for driving PLC/Servo Drive inputs.
The interface is mounted in a DIN rail enclosure.

•  10 to 28VDC input Power supply
•  Power supply current 100mA max with 12VDC supply, 85mA max with 24VDC supply
•  Differential RS422 inputs terminated with 270 ohm
•  Transient suppression on RS422 inputs
•  Outputs can source and sink 20mA max.
•  Provides encoder to PLC/Servo Drive interface
•  Max input frequency 200KHz

90mm high X 80mm wide X 25mm thick (i.e. rail width)

Versions Available
•  2225-803 - RS422 Encoder to PLC Interface Mk2 (NB. This model is backward compatible to previous MK1 models 2225-801 and 2225-802 )

Download 2163 User Instructions 2225 Mk 2 Series User Instructions
