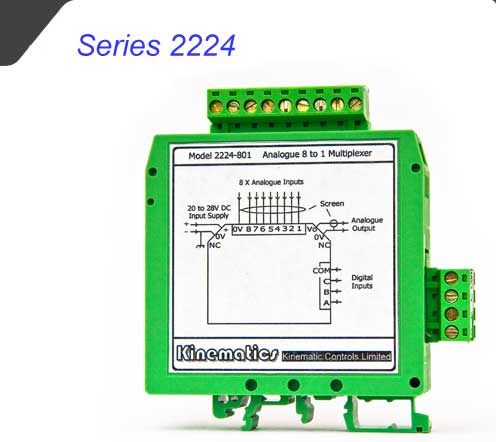

Series 2224 Analogue 8 to 1 Electronic Multiplexer

The Kinematics Series 2224 Analogue Multiplexer is a cost effective way to increase the number of analogue inputs on devices such as PLCs. It is suited to the capture of slower changing analogue signals such as temperature, humidity etc. Each input is selected one at a time to a common analogue output. The selection is via a combination of signals on the digital inputs (BCD encoded)
The control is mounted in a DIN rail enclosure.

•  20 to 28VDC input Power supply
•  Power supply current 12mA max
•  0-10VDC or 0-20mA maximum analogue input signal
•  0-10VDC max analogue output range
•  Isolated 10-28VDC Digital Control inputs
•  Bidirectional Digital Control inputs
•  Ideal as low cost PLC analogue inputs

90mm high X 80mm wide X 25mm thick (i.e. rail width)

Versions Available
•  2224-801 - Analogue 8 to 1 Multiplexer

Download 2163 User Instructions 2224-801 User Instructions
